Under Vehicle Carriage Surveillance System
TS-UVscan
TS-UVscan produces crisp pictures to monitor under-vehicle carriage. Installed at seaports, airports, factories, nuclear power plants, and other high-security places, it dramatically enhances security in the facilities.Utilizing a high-speed line scan camera coupled with a bright double-bar projection illumination system, it provides more precise, fast, and effective monitoring. It effectively scans cars or trucks moving up to 60 km/h, it can even scan heavy container trucks.
Moreover, its automatic optic-path cleaning system enables it to operate and produce a clear image even in heavy rain or sand-storm.
In addition, it dramatically reduces the system maintenance efforts.

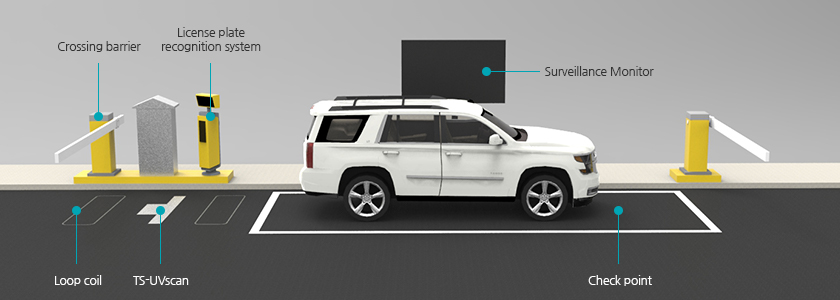

System Diagram
Specifications
| Sensor type | Color Linear CMOS scan camera | Dimension | 1800 x 530 x 300 mm |
|---|---|---|---|
| Recognition and display speed | less than 1 second | Sensor resolution/Zoom rate | 4096 pixels, 16x zoom |
| IP rating | IP68 | Power | 24V, 8A |
| Recognition rate | 100% | Illumination | 120W double bar projection |
| Maximum vehicle weight | 60 ton | Installation type | Embedded |
| Operation temperature | -20~60℃ | Maximum vehicle speed | 60 Km/h, 40 Mile/h |
Features
Optic-path cleaning system
- Innovative, patented optic-path design minimized the optical scanning path so that high-pressure air effectively cleans heavy rain or sand dust during the scan
- 24/7 all-weather operation
< High quality, crisp images without blur caused by rainfall >
-

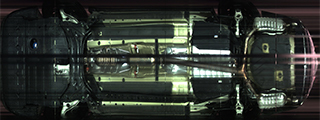

Rainfall blurred images by conventional systems
-

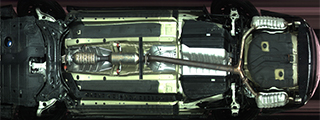

High-quality image during rainfall by TS-UVscan

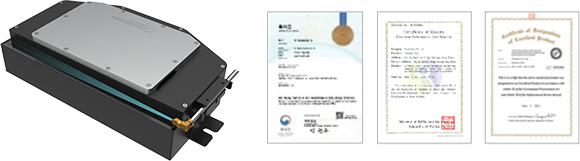

< Patented scanning module design suitable for automatic cleaning system,
performance certification form Korean govenment >
Wide double bar
projection illumination
- The wide, symmetric double bar projection illumination covers full lane – can scan various types of vehicle from sedan to wide cargo trucks
- Enhances the performance of abnormal object detection
- Produces clear images during night

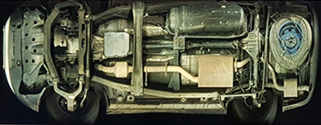

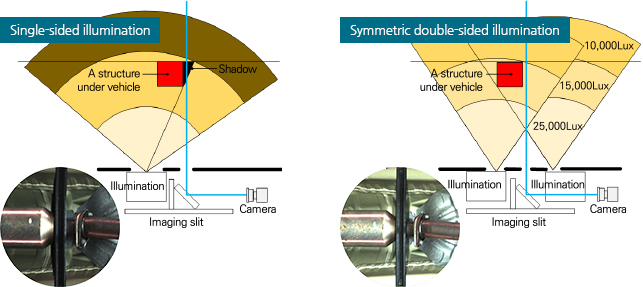

< High-quality image without hidden or shaded area by single-sided illumination >
< Narrow-angle double bar illumination produces bright images of high ground clearance vehicles such as container trucks >
-

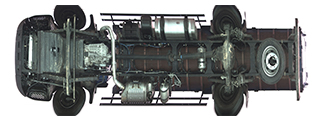

Cargo truck – ground clearance 60cm
-
Sedans – 20cm
Super-wide imaging slit
- The super-wide imaging slit provides enough view angle to scan vehicles with varying widths
- Enough room to scan cars deviant from road center

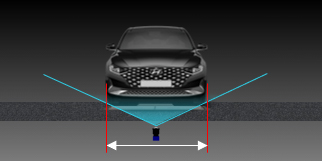

< Super-wide imaging slit enables the scanning of vehicles with varying widths >
-

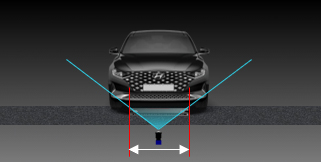

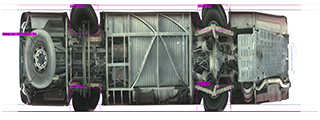

An image from a short imaging slit scanner
-

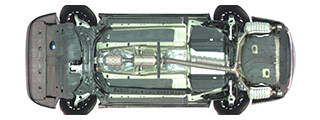

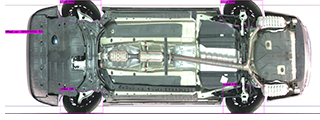

An image from TS-UVscan
Deep learning
technology
- Utilizes deep learning technology to find feature points such as wheel centers, bumpers, etc.→ Key information to compensate geometric distortion and image comparison
- Produces optimal images

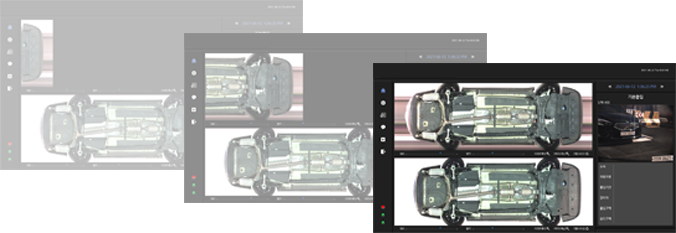

Realtime display
- Quick visual monitoring of under-vehicle carriage while scanning
- A display like a motion video

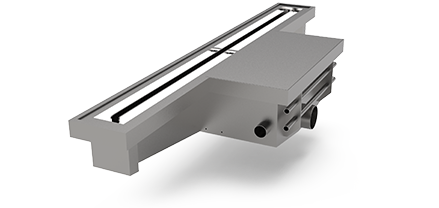

Extremely durable structure & material
- External housing itself is a single mold for concrete embedding with stainless steel
- The scanner module cover can withstand 60-ton truck passing-over

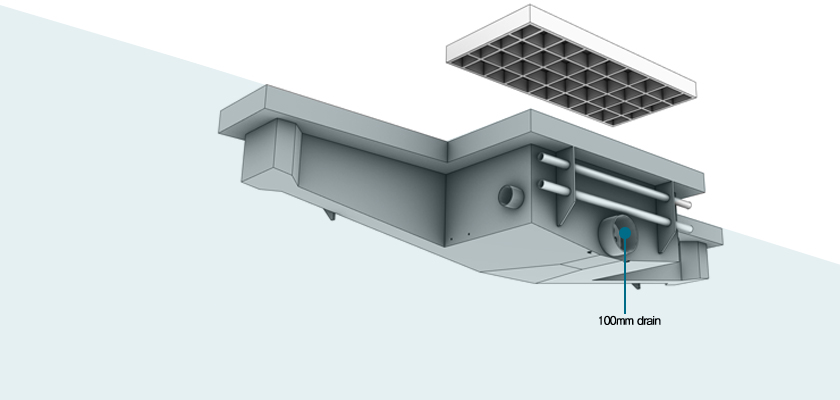

- Large water collector well type housing with 100mm(4-inch) drain effectively copes with heavy rainfall
- Extremely durable structure design and material. All housing material consists of SUS304 stainless steel and aluminum
